PRODUCTS DESCRIPTION
- Steel drums typically have two openings (bung holes)
with flanges, 2" and 3/4" in diameter, in the top of the
container. These openings are used for filling and
extraction, in addition, the 3/4" hole help to balance air
for better filling and extraction process

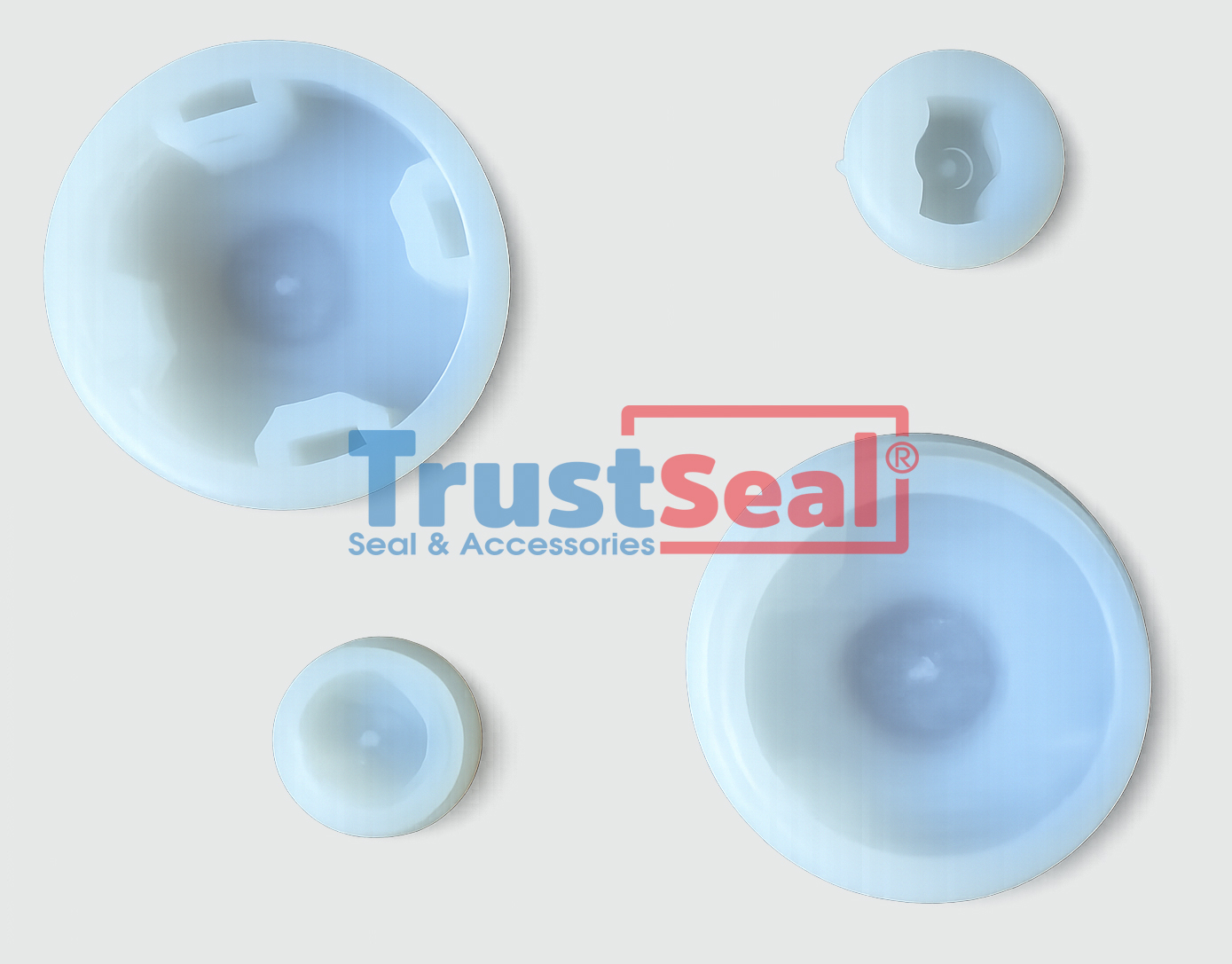

- This plastic plug can be used to reduce the cost but safe
- Avoid sparking for oil barrel better than using steel plug
- Steel drums typically have two openings (bung holes)
with flanges, 2" and 3/4" in diameter, in the top of the
container. These openings are used for filling and
extraction, in addition, the 3/4" hole help to balance air
for better filling and extraction process
- This plastic plug can be used to reduce the cost but safe
- Avoid sparking for oil barrel better than using steel plug

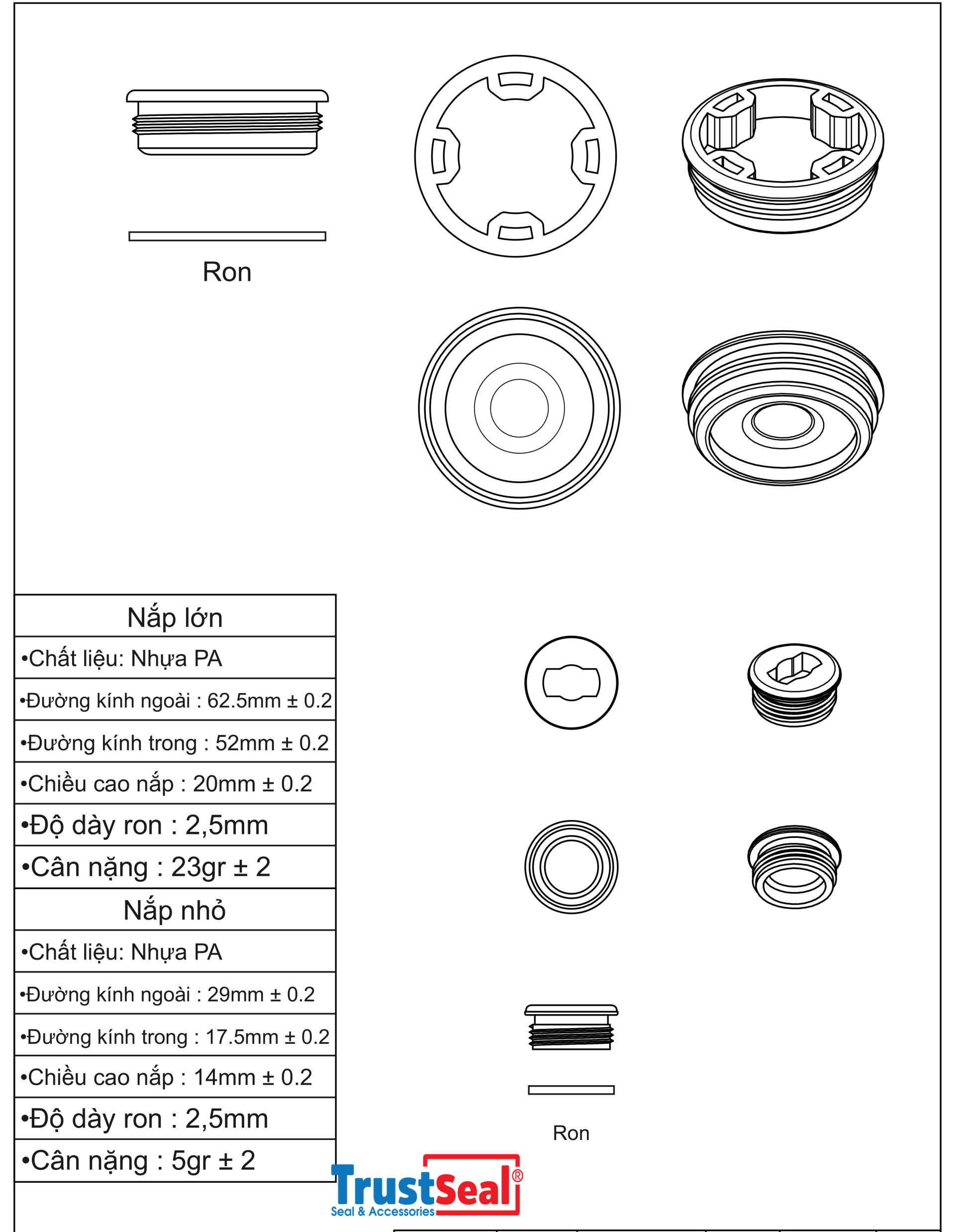

Specification:
- Material: PA plastic (Polyamide)
Cap for 2" hole:
- Outer diameter: Ø 62mm ± 0.2
- Gasket diameter: Ø 60mm ± 0.2
- Cap height: 20mm ± 0.2
- Gasket thickness: 2.5mm ± 0.05
Cap for 3/4" hole:
- Outer Diameter Ø 29mm ± 0.2
- Gasket Diameter Ø 26mm ± 0.2
Cap Height: 14mm ± 0.2
Gasket Thickness: 2.5mm ± 0.05
